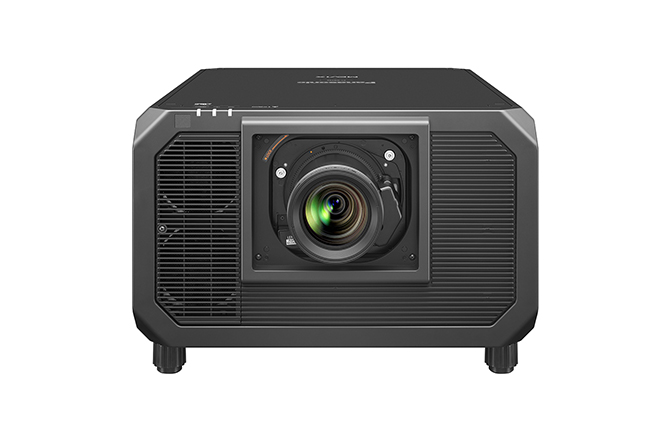

佳譽資訊Panasonic PT-RQ45K
按完整型號核對
詳細規格
原廠已核實技術欄位。台灣交貨版本及配件另確認，未核實資料不代填。
| 品牌／完整型號 | Panasonic PT-RQ45K |
|---|---|
| 投影技術 | 3-Chip DLP™ projector |
| 面板尺寸 | 24.4 mm (0.96 in) diagonal (16:10 aspect ratio) |
| 面板像素 | 2,304,000 (1920 x 1200 pixels) x 3 |
| 光源 | Laser diodes (Blue LD, Red LD) |
| 亮度（依原廠測量模式） | 42,000 lm / 42,000 lm (ANSI) / 43,600 lm (Center) |
| 亮度降至50%標示時數（非保固） | 20,000 hours (NORMAL), 24,000 hours (ECO), 26,000 hours (QUIET) |
| 顯示解析度 | 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON) |
| 對比度（依原廠指定模式） | 25,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
| 畫面尺寸（對角線） | 1.78–25.40 m (70–1000 in) (Depending on attached lens) |
| Center-to-corner zone ratio | 90 % |
| 鏡頭與投射比 | Optional (No lens included with this model) |
| 垂直鏡頭位移 | ±55 % (+68 %, +78 % with ET-D75LE95, ±48 % with ET-D3LEW201, ±44 % with ET-D3LEW60/D3LEW300/D3LEW600) (Powered) |
| 水平鏡頭位移 | ±20 % (±15 % with ET-D3LEW300/D3LEW600/D3LEW201, ±12 % with ET-D75LE95, 0 %, +25 % with ET-D3LEU101) (Powered) |
| Keystone correction range | Vertical: ±45 ° (± 40 ° with ET-D3LEW10/D3LES20/D3LES250, ±28 ° with ET-D3LEW60/D3LEW600, ±22 ° with ET-D3LEW50, ±15 ° with ET-D3LEW201/D3LEW300, ±8 ° with ET-D3LEU101, +5 ° with ET-D75LE95); Horizontal: ±40 ° (±15 ° with ET-D3LEW50/D3LEW60/D3LEW600, ±5 ° with ET-D3LEU101/D3LEW201/D3LEW300, 0 ° with ET-D75LE95) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °. |
| HDMI™ 1/2 IN | HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input ) |
| 12G/3G/HD SDI IN | BNC x 1 |
| 3G/HD SDI IN | — |
| SERIAL IN | D-sub 9-pin (Female) x 1 for external control (RS-232C compliant) |
| MULTI PROJECTOR SYNC IN | BNC x 1 |
| MULTI PROJECTOR SYNC OUT | BNC x 1 |
| 3D SYNC 1 IN/OUT | — |
| 3D SYNC 2 OUT | — |
| REMOTE IN | M3 stereo mini-jack x 1 for wired remote control |
| REMOTE OUT | M3 stereo mini-jack x 1 for link control (For wired remote control) |
| LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 100Base-TX/1000Base-T, Art-Net compatible |
| USB | USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory/USB Control Connect function |
| DC OUT | USB Type A x 1 (For power supply, DC 5 V, 2 A) |
| Expansion slot | Open slot for function boards, Intel SDM standard-compatible |
| Protocol versions | IPv4, IPv6 |
| 電源供應 | Single-phase AC 100–120 V / Single-phase AC 200–240 V, 50/60 Hz (Max. light output limited to 21,000 lm or less when using the projector with AC 100–120 V) |
| 最大耗電量 | 3,170 W |
| 運轉耗電量（依模式） | [NORMAL] 2,860 W [ECO] 2,250 W [QUIET] 2,010 W |
| 運轉噪音（依模式） | 49 dB (NORMAL/ECO), 45 dB (QUIET) |
| 機身尺寸（寬×高×深） | 598 x 352 x 780 mm (23 17/32˝ x 13 27/32˝ x 30 23/32˝ ) (Not including protruding parts) |
| 重量 | Approx. 66.7 kg (147.0 lbs) |
| 操作環境 | Operating temperature: 0–45 °C (32–113 °F) , operating humidity: 10–80 % (No condensation) |
| 相容軟體 | Visual Software Suite, Multi Monitoring & Control Software, Projector Network Setup Software, Smart Projector Control for iOS/Android™ |
| Control function via LAN | Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX DD, and PJLink™ (Class 2) |
2026/10/30整理。亮度、對比與光源時數依原廠指定模式及條件；實際畫面依環境光、布幕與尺寸。個別地區限定版本不視為台灣現貨。
設備到位，也把現場規劃好投影機、布幕、鏡頭與配線
投影機、布幕、鏡頭與配線
依需求整套評估。
提供用途、畫面尺寸、投影距離與縣市，讓佳譽協助確認配置與費用。
採購常見問題
Panasonic PT-RQ45K如何取得價格與訂購？
選擇數量及使用縣市，點選官網提出訂購需求。佳譽確認成交價格、台灣供貨版本、保固、交期與總費用後再付款。
Panasonic PT-RQ45K安裝與投影距離怎麼確認？
請提供畫面寬高、投影距離、室內光線及現有布幕、吊架資料，依本款鏡頭與投射比核對。選配鏡頭、布幕、吊架、配線與施工分項報價。
Panasonic PT-RQ45K亮度與4K規格如何解讀？
依本頁列示的原廠技術與測量條件比較，中心亮度與平均亮度分開看。4K可能以像素位移呈現，依顯示解析度及面板像素欄位核對；光源時數不等於保固時數。
