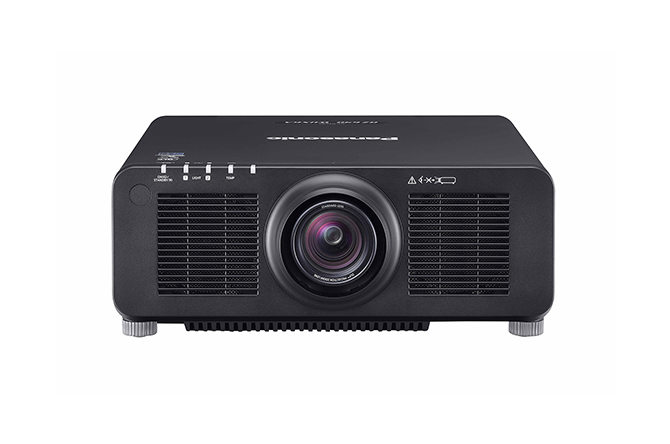

佳譽資訊Panasonic PT-RZ690
按完整型號核對
詳細規格
原廠已核實技術欄位。台灣交貨版本及配件另確認，未核實資料不代填。
| 品牌／完整型號 | Panasonic PT-RZ690 |
|---|---|
| 投影技術 | 1-Chip DLP™ projector |
| 面板尺寸 | 17.0 mm (0.67 in) diagonal (16:10 aspect ratio) |
| Display method | DLP™ chip x 1, DLP™ projection system |
| 面板像素 | 2,304,000 (1920 x 1200 pixels) |
| 光源 | Laser diodes |
| 亮度（依原廠測量模式） | 6,000 lm (Normal) /6,000 lm (ANSI) /6,200 lm (Center) |
| 亮度降至50%標示時數（非保固） | 20,000 hours (Normal)/24,000 hours (Eco) |
| 顯示解析度 | 1920 x 1200 pixels |
| 對比度（依原廠指定模式） | 10,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
| 畫面尺寸（對角線） | 1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, 2.54–8.89 m (100–350 in) with ET-DLE035, 2.54–10.16 m (100–400 in) with ET-DLE020, 16:10 aspect ratio |
| Center-to-corner zone ratio | 90 % |
| 鏡頭與投射比 | PT-RZ790/RZ690: Powered zoom (throw ratio 1.71–2.41:1), powered focus F 1.7–1.9, f 25.6–35.7 mm PT-RZ790L/RZ690L: Optional powered zoom/focus lenses |
| 垂直鏡頭位移 | +50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered) |
| 水平鏡頭位移 | +30 %, -10 % (+10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered) |
| Keystone correction range | Vertical: ±40 ° (±5 ° with ET-DLE020, ±16 ° with ET-DLE060, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055, +5 ° with ET-DLE035), Horizontal: ±15 ° (±10 ° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020) |
| Keystone correction range with optional ET-UK20 Upgrade Kit | Vertical: ±45 ° (±16 ° with ET-DLE060, ±40 ° with ET-DLE150/ET-DLE250/ET-DLE170, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055), Horizontal: ±40 ° (±10 ° with ET-DLE060, ±15 ° with ET-DLE105/ET-DLE085/ET-DLE055) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °. |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| SDI IN | BNC x 1: 3G/HD/SD-SDI input |
| HDMI IN | HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input ) |
| DVI-D IN | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) |
| RGB 1 IN | RGB x 1 (BNC x 5): RGB/YP B P R /YC B C R |
| RGB 2 IN | D-sub HD 15-pin (female) x 1: RGB/YP B P R /YC B C R |
| SERIAL/MULTI PROJECTOR SYNC IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| SERIAL/MULTI PROJECTOR SYNC OUT | D-sub 9-pin (male) x 1 for link control |
| REMOTE 1 IN | M3 x 1 for wired remote control |
| REMOTE 1 OUT | M3 x 1 for link control (for wired remote control) |
| REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
| DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible, 4K/60p signal input |
| LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| 電源供應 | AC 100–240 V, 50/60 Hz |
| 最大耗電量 | 565 W (5.9–2.4 A) (0.5 W with Standby Mode set to ECO, 7 W with Standby Mode set to NORMAL) |
| 運轉耗電量（依模式） | [NORMAL] 490 W [ECO] 395 W |
| Cabinet materials | Molded plastic |
| 運轉噪音（依模式） | 35 dB (Normal) |
| 機身尺寸（寬×高×深） | PT-RZ790/RZ690: 498 x 200 x 581 mm (19 19/32˝ x 7 7/8˝ x 22 7/8˝) (with supplied lens) PT-RZ790L/RZ690L: 498 x 200 x 538 mm (19 19/32˝ x 7 7/8˝ x 21 3/16˝) (without lens) |
| 重量 | PT-RZ790/RZ690: Approx. 22.1 kg (48.7 lbs) (with supplied lens) PT-RZ790L/RZ690L: Approx. 21.3 kg (47.0 lbs) (without lens) |
| 操作環境 | Operating temperature: 0–45 °C (32–113 °F) , operating humidity: 10–80 % (no condensation) |
| 相容軟體 | Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™ |
2026/10/30整理。亮度、對比與光源時數依原廠指定模式及條件；實際畫面依環境光、布幕與尺寸。個別地區限定版本不視為台灣現貨。
設備到位，也把現場規劃好投影機、布幕、鏡頭與配線
投影機、布幕、鏡頭與配線
依需求整套評估。
提供用途、畫面尺寸、投影距離與縣市，讓佳譽協助確認配置與費用。
採購常見問題
Panasonic PT-RZ690如何取得價格與訂購？
選擇數量及使用縣市，點選官網提出訂購需求。佳譽確認成交價格、台灣供貨版本、保固、交期與總費用後再付款。
Panasonic PT-RZ690安裝與投影距離怎麼確認？
請提供畫面寬高、投影距離、室內光線及現有布幕、吊架資料，依本款鏡頭與投射比核對。選配鏡頭、布幕、吊架、配線與施工分項報價。
Panasonic PT-RZ690亮度與4K規格如何解讀？
依本頁列示的原廠技術與測量條件比較，中心亮度與平均亮度分開看。4K可能以像素位移呈現，依顯示解析度及面板像素欄位核對；光源時數不等於保固時數。
