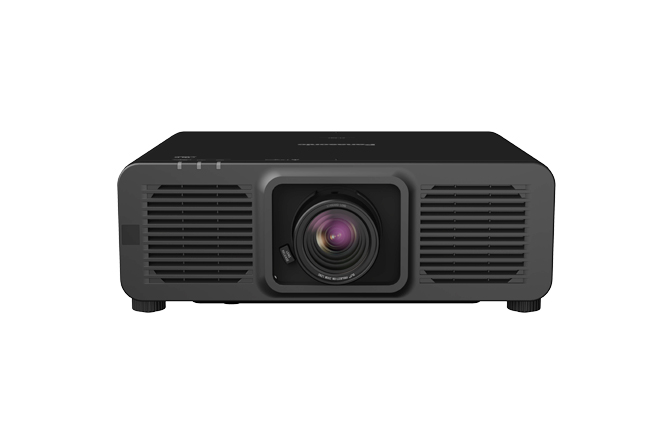

佳譽資訊Panasonic PT-RZ7L
按完整型號核對
詳細規格
原廠已核實技術欄位。台灣交貨版本及配件另確認，未核實資料不代填。
| 品牌／完整型號 | Panasonic PT-RZ7L |
|---|---|
| 投影技術 | 1-Chip DLP™ projectors |
| 面板尺寸 | 17.0 mm (0.67 in) diagonal (16:10 aspect ratio) |
| Display method | DLP™ chip x 1, DLP™ projection system |
| 面板像素 | 2,304,000 (1920 x 1200 pixels) |
| 光源 | Laser diode |
| 亮度（依原廠測量模式） | 7,500 lm / 7,500 lm (ANSI) / 7,700 lm (Center) |
| 亮度降至50%標示時數（非保固） | 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) |
| 顯示解析度 | WUXGA (1920 x 1200 pixels) |
| 對比度（依原廠指定模式） | 15,000:1 (Full On/Full Off, Dynamic Contrast [3]) |
| 畫面尺寸（對角線） | 1.27–5.08 m (50–200 in) with ET-DLE055, 1.27–15.24 m (50–600 in) with ET-DLE060/ET-DLE085/ET-DLE105/ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350/ET-DLE450, 2.54–8.89 m (100–350 in) with ET-DLE035, 2.54–10.16 m (100–400 in) with ET-DLE020G/ET-DLE020 |
| Center-to-corner zone ratio | 90 % |
| 鏡頭與投射比 | Optional (no lens included with this model) |
| 垂直鏡頭位移 | +60 %, -16 % (with ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350/ET-DLE450); +55 %, -16 % (with ET-DLE085/ET-DLE105); +40 %, -16 % (with ET-DLE060); +50 %, -20 % (with ET-DLE020G/ET-DLE020); +88 % (with ET-DLE035); (powered) |
| 水平鏡頭位移 | +30 %, -10 % (with ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350/ET-DLE450); +28 %, -10 % (with ET-DLE085/ET-DLE105); +19 %, -10 % (with ET-DLE060); +10 %, -20 % (with ET-DLE020G/ET-DLE020); (powered) |
| Keystone correction range | Vertical: ±45 ° (±5 ° with ET-DLE020G/ET-DLE020,, +5 ° with ET-DLE035, ±16 ° with ET-DLE060, ±22 ° with ET-DLE55/ET-DLE085/ ET-DLE105, ±40 ° with ET-DLE150/ET-DLE170/ET-DLE250) Horizontal: ±40 ° ( ±10 ° with ET-DLE060, ±15 ° with ET-DLE55/ET-DLE085/ET-DLE105, cannot be used with ET-DLE020G/ET-DLE020/ET-DLE035) |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |
| HDMI™ IN | HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input ) |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| REMOTE IN | M3 stereo mini-jack x 1 for wired remote control |
| REMOTE OUT | M3 stereo mini-jack x 1 for link control (for wired remote control) |
| DIGITAL LINK/LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input) |
| LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| USB (DC OUT) | USB connector (Type A) x 1 for DC 5 V/ 2 A power supply, optional AJ-WM50 Series Wireless Module, and data transfer from USB memory |
| Expansion slot | Open slot for function boards, Intel SDM standard-compatible |
| Protocol versions | IPv4, IPv6 |
| 電源供應 | AC 100–240 V, 50/60 Hz |
| 最大耗電量 | 660 W (6.8–2.8 A) (680 VA) (Power consumption is 640 W at AC 200–240 V) |
| 運轉耗電量（依模式） | [NORMAL] 530 W (AC 100–120 V) 510 W (AC 200–240 V) [ECO] 400 W (AC 100–120 V) 390 W (AC 200–240 V [QUIET] 400 W (AC 100–120 V) 390 W (AC 200–240 V) |
| Cabinet materials | Molded plastic |
| 運轉噪音（依模式） | 35 dB (NORMAL/ECO), 32 dB (QUIET) |
| 機身尺寸（寬×高×深） | 498 x 170 x 440 mm (19 19/32˝ x 6 11/16˝ x 17 5/16˝) (With legs at shortest position, excluding protruding parts) |
| 重量 | 16.6 kg (36.59 lbs) |
| 操作環境 | Operating temperature: 0–45 °C (32–113 °F) , operating humidity: 10–80 % (no condensation) |
| 相容軟體 | Multi Monitoring & Control Software, Projector Network Setup Software, Visual Software Suite, Geometry Manager Pro, Smart Projector Control for iOS/Android™ |
| Control function via LAN | Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX DD, and PJLink™ (Class 2) |
2026/10/30整理。亮度、對比與光源時數依原廠指定模式及條件；實際畫面依環境光、布幕與尺寸。個別地區限定版本不視為台灣現貨。
設備到位，也把現場規劃好投影機、布幕、鏡頭與配線
投影機、布幕、鏡頭與配線
依需求整套評估。
提供用途、畫面尺寸、投影距離與縣市，讓佳譽協助確認配置與費用。
採購常見問題
Panasonic PT-RZ7L如何取得價格與訂購？
選擇數量及使用縣市，點選官網提出訂購需求。佳譽確認成交價格、台灣供貨版本、保固、交期與總費用後再付款。
Panasonic PT-RZ7L安裝與投影距離怎麼確認？
請提供畫面寬高、投影距離、室內光線及現有布幕、吊架資料，依本款鏡頭與投射比核對。選配鏡頭、布幕、吊架、配線與施工分項報價。
Panasonic PT-RZ7L亮度與4K規格如何解讀？
依本頁列示的原廠技術與測量條件比較，中心亮度與平均亮度分開看。4K可能以像素位移呈現，依顯示解析度及面板像素欄位核對；光源時數不等於保固時數。
